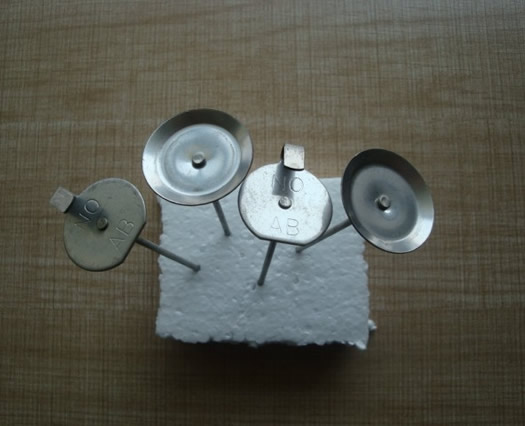

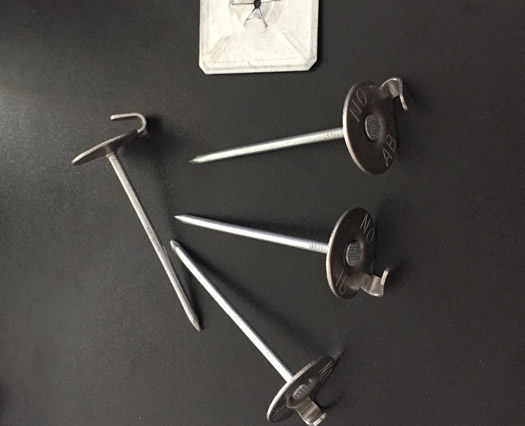

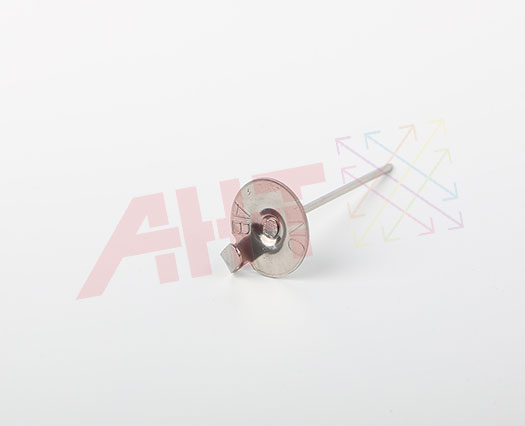

The Lacing Anchor is used in the production of insulation blankets or removable covers and pads. The pin is pressed through the insulation layer, so the hook portion sits on the top edge and the pin is locked on the opposite side of the insulation with a washer. The two sides of the insulation materials can then be “laced” together by the hooks with tie wire.

Specifications
Materials: SS 304 /301 /310 Stainless Steel & Mild Steel
Plating: Zinc plating for Mild steel.

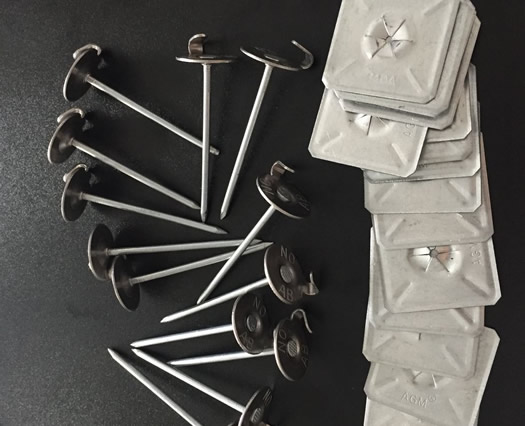

Washers: Self-locking washers are available in a variety of sizes, shapes, and materials.
                  Domed Caps can also be used to cover the tip of the nail.

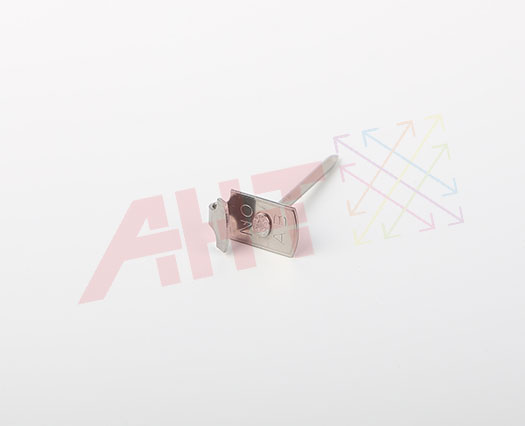

NO-AB
Non-asbestos material can be stamped.

Size
Diameter: 12GA, 14GA, Other sizes are available by special order.
Length: 2-1/2″ & 3”, 3-1/2″, 4-1/2″are standard. Other lengths available by special order.
